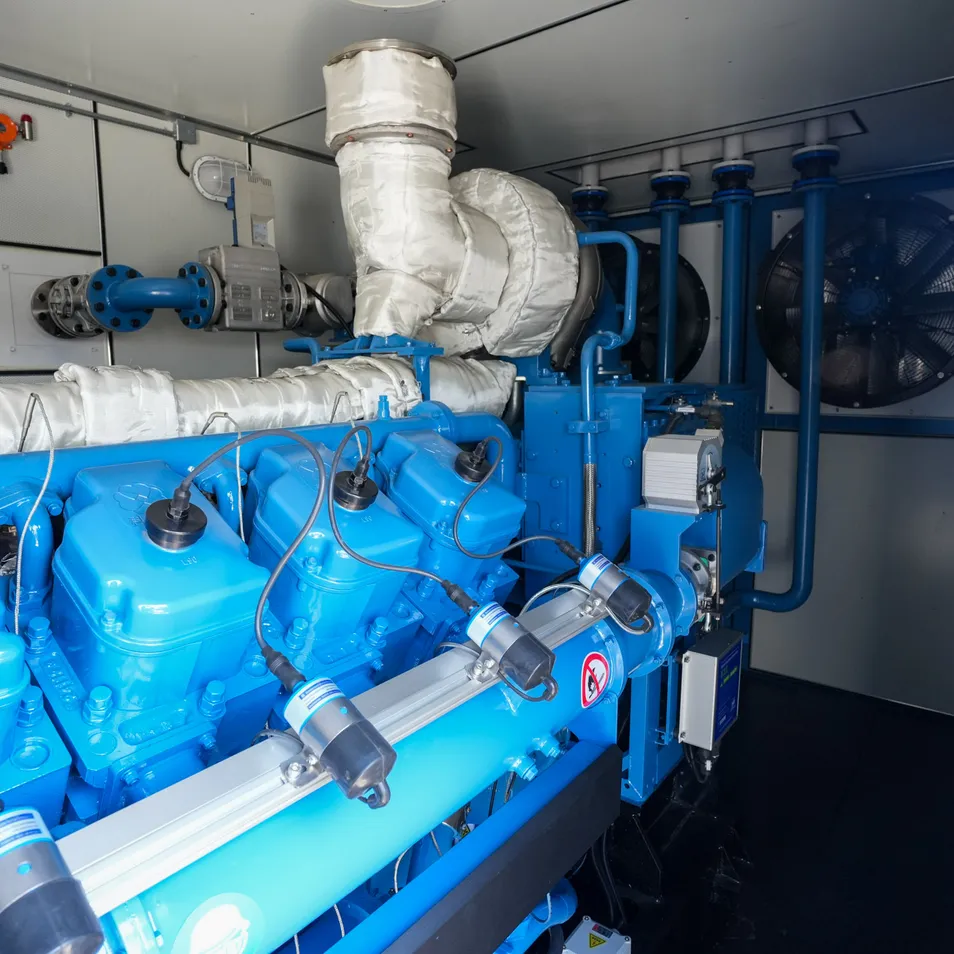

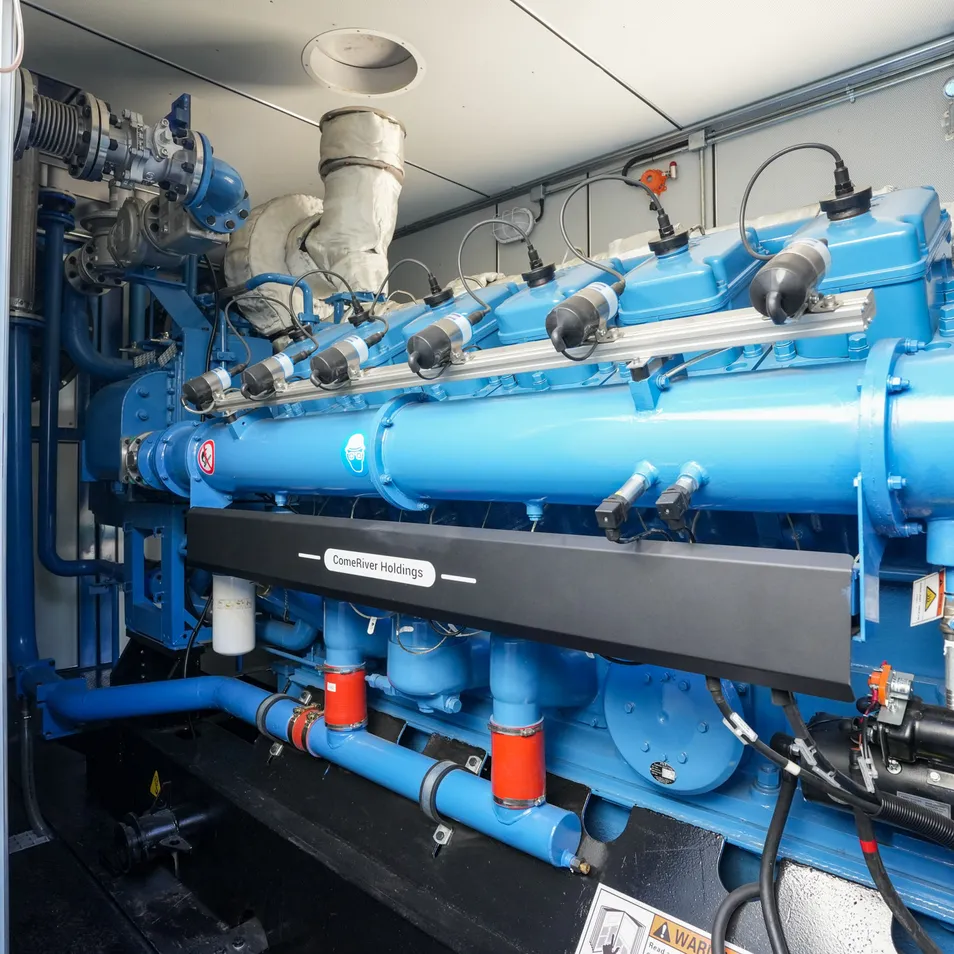

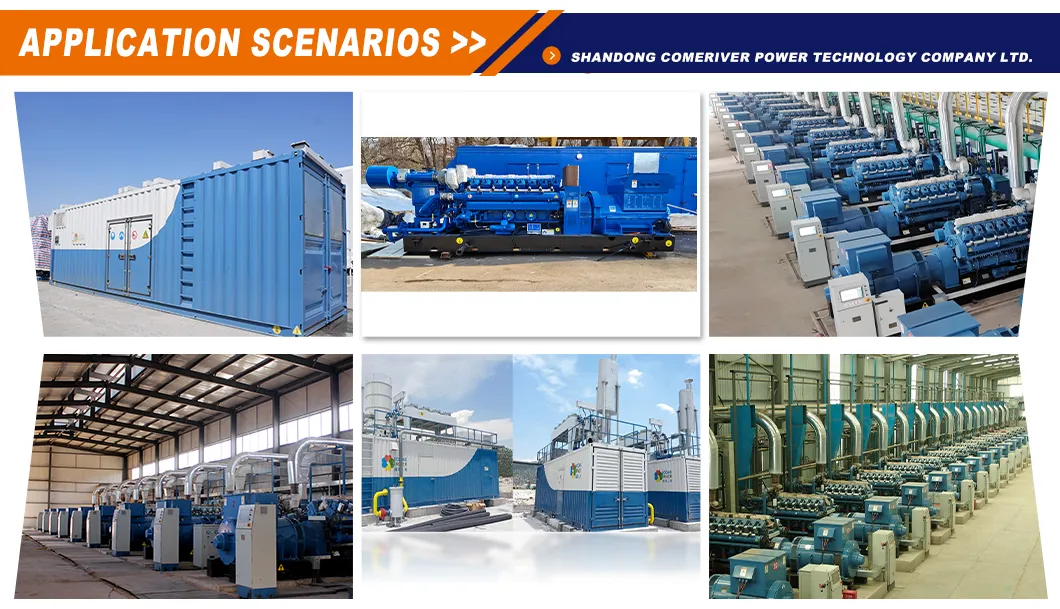

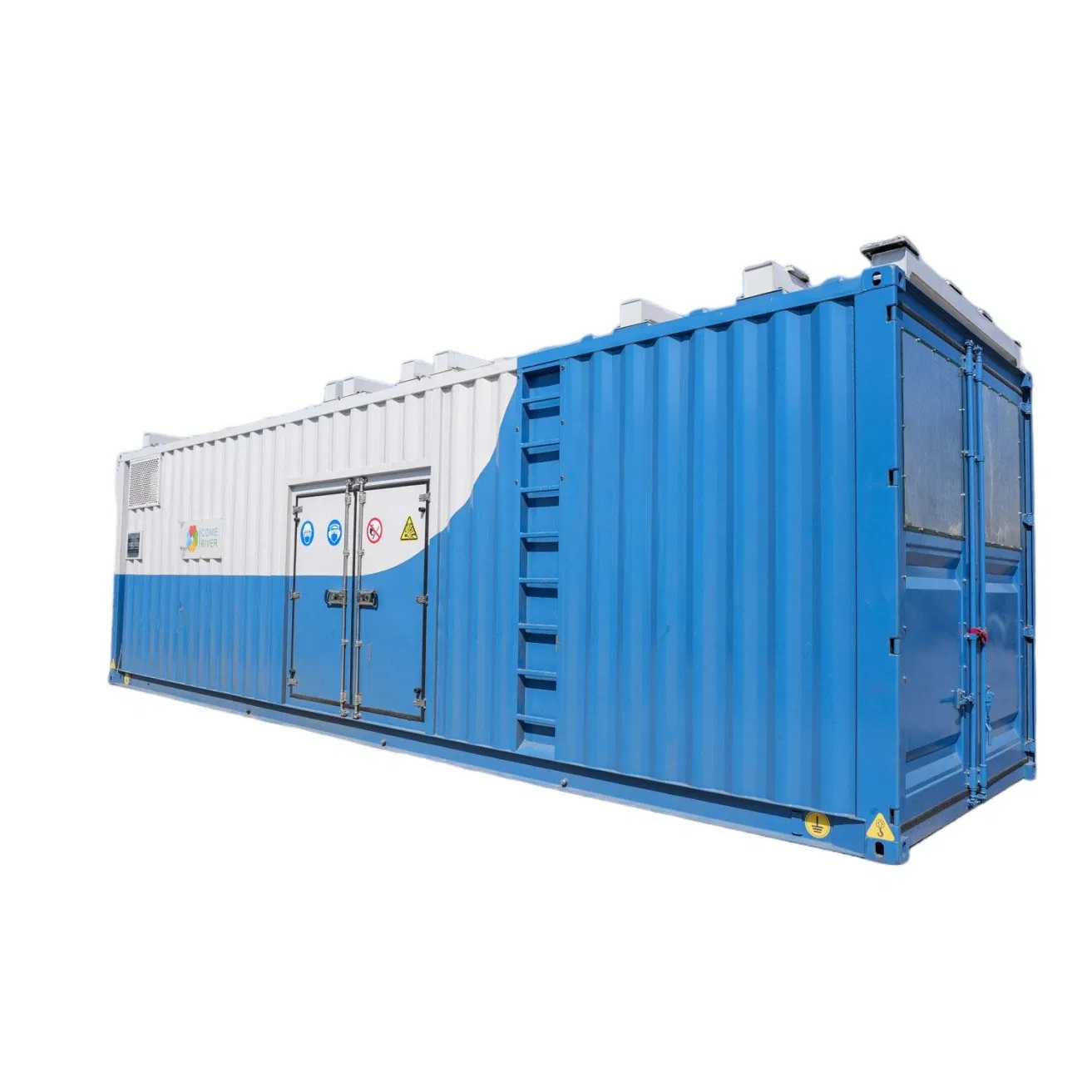

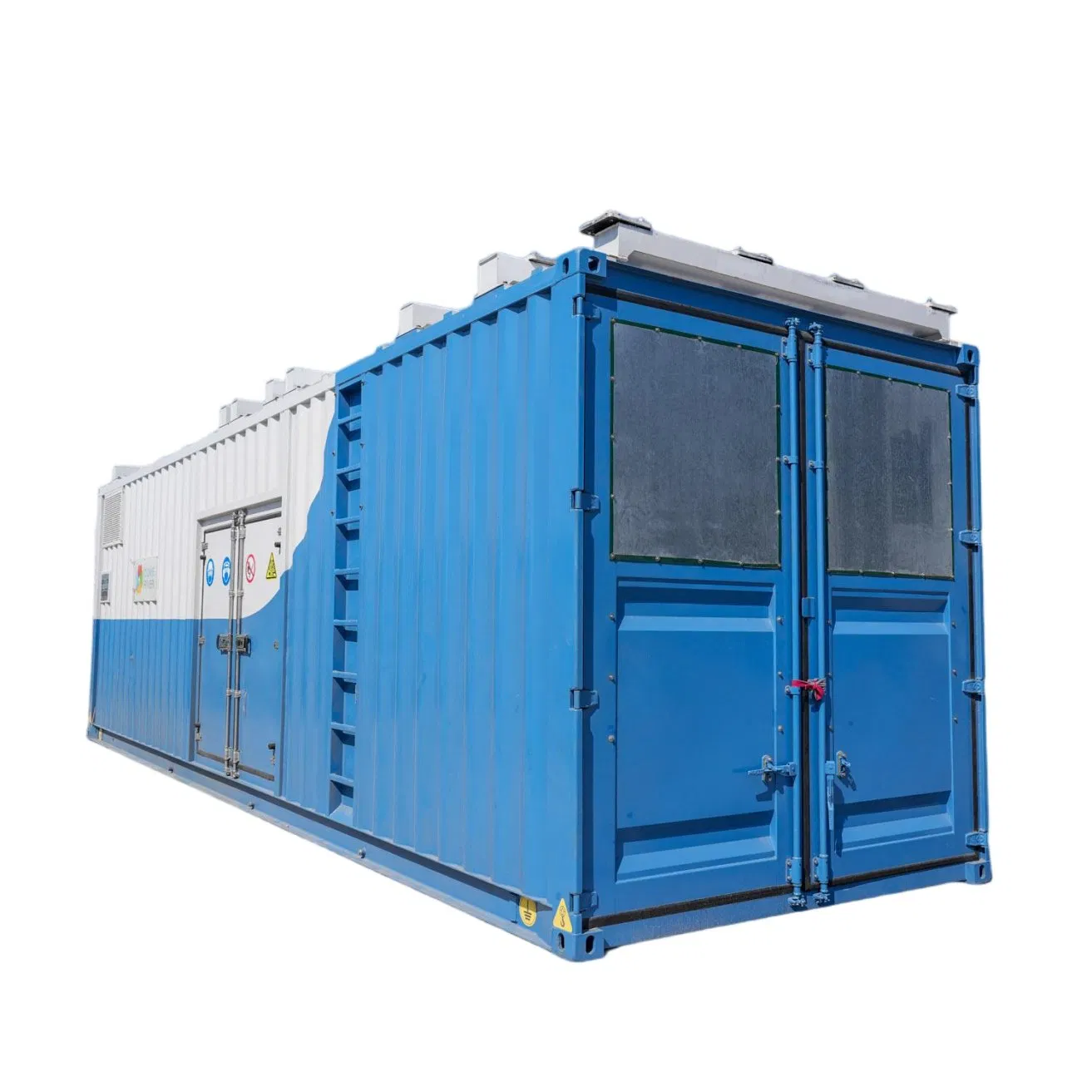

Covering a power range of 500-1500kW, this natural gas generator set series utilizes pipeline natural gas with lean-burn combustion and precision air-fuel ratio control for efficient, clean, and low-noise operation. Features include one-touch starting, stable paralleling, and combined heat and power capability, achieving overall efficiency above 85%. Advantages include stable fuel supply, emission levels well below national standards, and extended maintenance intervals. Widely applied in industrial parks, data centers, hospitals, and commercial complexes, they are particularly suitable for computing centers as prime or backup power, providing high-reliability electricity while utilizing waste heat recovery to supply server cooling systems, significantly reducing PUE (Power Usage Effectiveness).
The gas generator set is packaged with anti-rust and moisture-proof protection. The main genset and key components are secured on a steel base frame and covered with waterproof and dustproof sheeting, complying with international standards for sea and land transport. Two transport modes are available: for sea freight, gensets are loaded in containers or flat racks with lashing and securing in accordance with international standards; for road transport, low-bed trailers are used with multiple vibration dampening and displacement monitoring measures. Accompanying documents, special tools, and spare parts are separately packed in waterproof cases. Complete-genset or batch shipping options are available based on project requirements.
Full lifecycle services are provided from installation and commissioning to long-term operation and maintenance, including on-site guidance, operator training, and remote technical support. Free repair or replacement of non-artificially damaged components is covered under warranty, with extended warranty options and spare parts supply available thereafter. A 24/7 service hotline is established, with engineer on-site response guaranteed within 48 hours in key regions, ensuring continuous and reliable genset operation.
| Technical Data for CP1000GFT21H/CP1000GJT21H | ||||
|---|---|---|---|---|
| Generating Set Technical Specifications | ||||
| Engine Model | CP21H-2A-1000 | |||
| Control System Type | MCU2-SE4-CP12V190-02 | MCU2-SE4-CP12V190-02(For Containerized gensets) | ||
| Rated Power | kW | 1000 | ||
| Rated Current | A | 1804.3 | 114.6 | 68.7 |
| Rated Voltage | V | 400 | 6300 | 10500 |
| Rated Frequency | Hz | 50 | ||
| Rated Speed | r/min | 1000 | ||
| Rated Power Factor | cosφ | 0.8(Lagging) | ||
| Lube Oil Consumption Rate | g/(kW·h) | ≤0.5 | ||
| Electrical Efficiency | % | 40 | ||
| Performance level | G2 | |||
| Phases and Connection | 3-Phase 4-Wire | 3-Phase 3-Wire | 3-Phase 3-Wire | |
| Voltage Regulation Method | Auto | |||
| Excitation Method | Brushless Excitation | |||
| Starting Method | DC24V Electric Start with Double Motor or AC380V Electric Start | |||
| Speed Governing Method | Electronics Speed Regulation | |||
| Noise | dB(A) | ≤107 | 85(1 Meter from the Container) | |
| Vibration | mm/s | ≤7.2 | ||
| Overall Dimensions of Genset | (L×B×H),mm | 6548×1672×2467 | 6734×1672×2467 | |

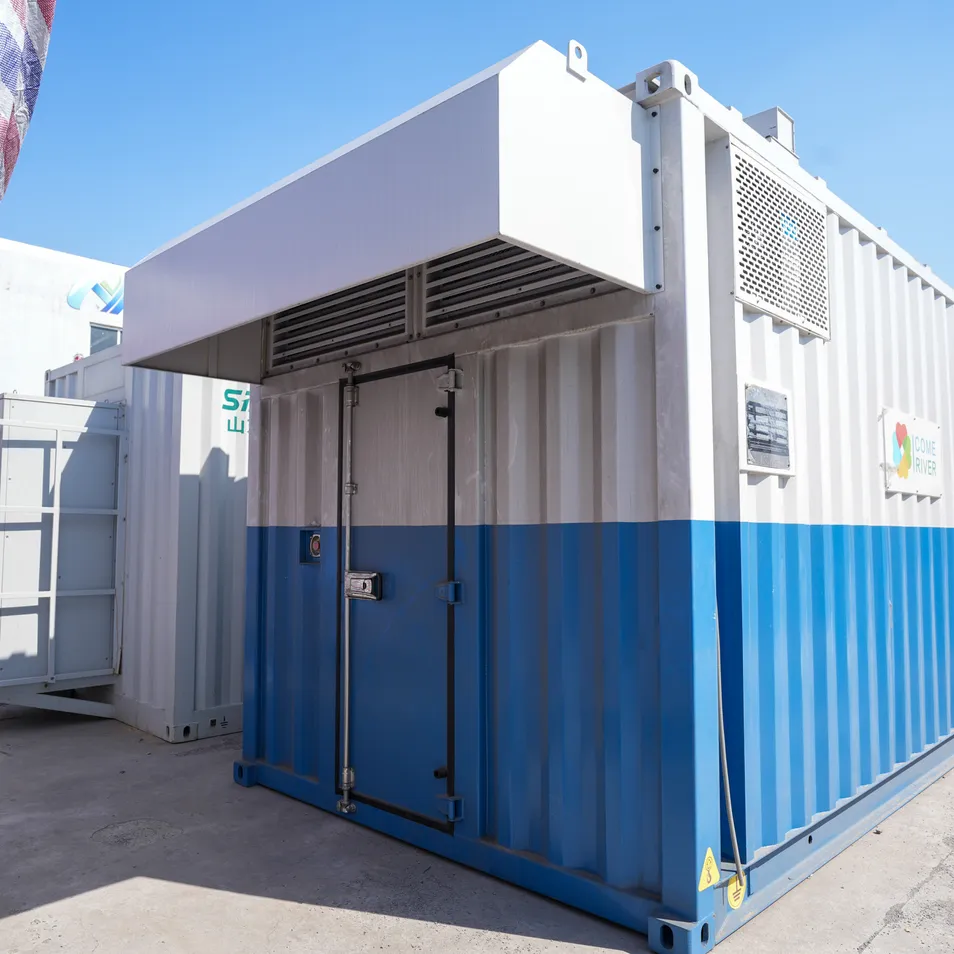

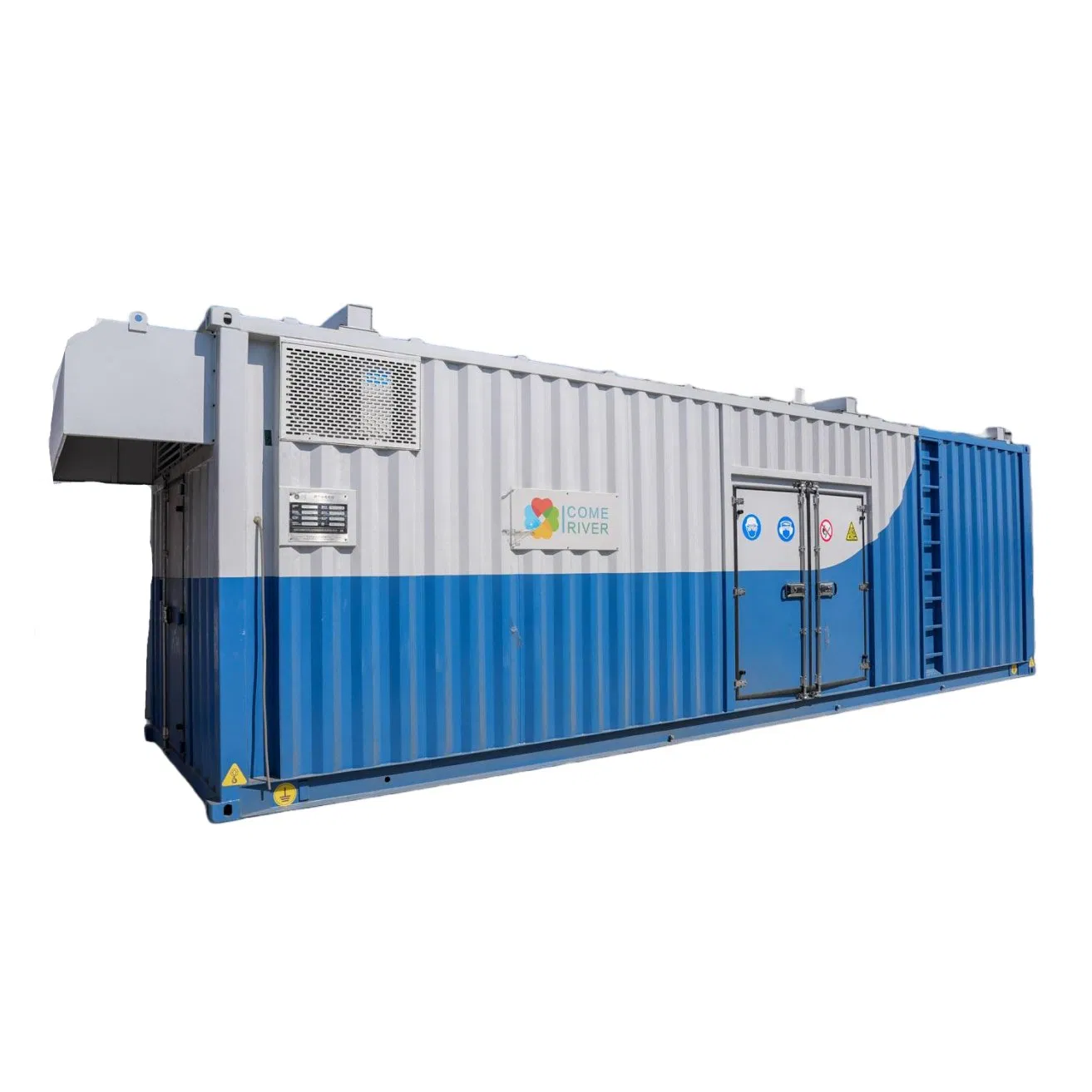

| Overall Dimensions of Containerized Genset | (L×B×H),mm | 11652×3800×7700 | ||
| Net Weight of Genset | kg | 15000 | ||
| Weight of Containerized Genset | kg | 36000 | ||
| Major Overhaul Interval | h | 40000 | ||
| Engine Technical Specifications | ||||
| Number of Cylinders | 12 | |||
| Cylinder Arrangement | V-type at 60° | |||
| Bore | mm | 195 | ||
| Stroke | mm | 230 | ||
| Total Displacement | L | 82.4 | ||
| Compression Ratio | 11 | |||
| Air Intake Method | Exhaust gas turbine single-charger, pre-charger mixing, electronically controlled Venturi mixer | |||
| Calibrated Power | kW | 1100 | ||
| Minimum Stable No-Load Speed | r/min | 700 | ||
| Mean Effective Pressure | MPa | 1.6 | ||
| Mean Piston Speed | m/s | 7.67 | ||
| Ignition Advance Angle | °CA | 32±2 | ||
| Ignition Order | 1-8-5-10-3-7-6-11-2-9-4-12 | |||
| Main Oil Gallery Pressure | kPa | 500-800 | ||
| Turbocharger Oil Pressure | kPa | 300-500 | ||
| Cooling Method | Forced and Circulated Water Cooling | |||
| Lubrication Method | Combined Pressure and Splash Lubrication | |||
| Ignition Method | Spark Ignition | |||
| Rotation Direction | Counterclockwise (When Viewed from The Output End) | |||
| Output Method | Flywheel Output | |||
The products are packed in export-standard packaging. Depending on the product size, weight, and shipping method, cartons, wooden cases, or pallets will be used, with proper shockproof, moisture-proof, and anti-collision protection inside to ensure safe transportation.
We support sea freight, air freight and land transportation, and can arrange shipment according to customer requirements.
The final packing method, packing quantity, gross weight, volume, and delivery time shall be subject to order confirmation.
